Polyurethane Adhesives

Single & Dual-Component

High flexible bonding for metals, plastics, and wood

Acrylic Adhesives Epoxy Adhesives Hot Melts Instant Adhesives Methyl Methacrylate Adhesives Polyurethane Adhesives Silicone Adhesives Threadlockers

Polyurethane Adhesives

Polyurethane (PU) adhesives are premium, high-performance bonding solutions engineered to solve complex manufacturing challenges. At their core, these polymers rely on urethane linkages formed via an efficient exothermic polyaddition reaction between isocyanate ( $-NCO$ ) and hydroxyl ( $-OH$ ) groups.

For modern manufacturers, the true commercial value of PU adhesives lies in their phase-segregated morphology. By precisely balancing hard segments (isocyanates, which deliver high tensile strength and thermal stability) with soft segments (polyols, which provide impact resistance and low-temperature elongation), formulators can customize solutions tailored to your exact production needs—ranging from rigid structural pastes to permanently flexible sealants. This unmatched tunability allows engineers to confidently deploy PU systems across demanding, stress-variable environments, ultimately reducing joint failure and extending product lifecycles. In practice, this translates to specialized applications ranging from the high-modulus structural integrity required to bond dissimilar carbon-fiber and aluminum parts in aerospace, and the fatigue-resistant, acoustic-damping seals essential for heavy transportation.

Q: How does ambient humidity impact the curing kinetics of 1K PU adhesives?

A: Because water acts as a stoichiometric reactant, the curing rate of 1K PU is directly proportional to both absolute humidity and temperature. Standard testing is typically conducted at $23^\circ C$ and 50% Relative Humidity (RH). Dropping the RH significantly inhibits the generation of primary amines, drastically retarding the depth of cure (often limited to 2-4 mm per 24 hours under standard conditions).

Q: What is the difference between "Pot Life" and "Open Time" in PU systems?

A: Pot life refers to the usable time a mixed 2K PU system retains a workable viscosity in the mixing vessel before exothermic crosslinking renders it unpumpable. Open time refers to the maximum allowable time interval between applying the adhesive to the substrate and mating the parts before the adhesive "skins over," which would catastrophically compromise substrate wetting and final adhesion.

Q: What are the primary safety and handling concerns regarding isocyanates?

A: Monomeric isocyanates (such as MDI and TDI) are potent respiratory and dermal sensitizers. Proper engineering controls (fume extraction) and PPE are mandatory. Furthermore, because isocyanates are highly reactive with atmospheric moisture, storage containers must be purged with dry nitrogen or fitted with desiccant breathers to prevent premature bulk curing inside the packaging.

Q: How does the selection of the diisocyanate monomer (e.g., MDI, TDI, HDI) influence the ultimate thermal and mechanical properties of the cured matrix?

A: Aromatic isocyanates like MDI (Methylene Diphenyl Diisocyanate) and TDI (Toluene Diisocyanate) yield highly rigid, structurally robust networks due to the steric hindrance provided by their benzene rings. MDI is widely favored for heavy-duty structural adhesives due to its lower vapor pressure (enhancing workplace safety) and its superior extreme low-temperature performance, maintaining elasticity down to -100°C. Conversely, aliphatic isocyanates like HDI (Hexamethylene Diisocyanate) lack these UV-absorbing aromatic rings. While they offer slightly lower initial rigidity and carry a higher cost, HDI-based systems provide exceptional UV resistance, preventing the photo-oxidative yellowing and surface chalking that degrade outdoor architectural and marine bonds over time.

Q: How do polyether-based polyols compare to polyester-based polyols regarding the environmental durability of the adhesive?

A: The formulation of the "soft segment" dictates the adhesive's environmental resistance profile. Polyether-based polyols contain ether linkages that are highly resistant to hydrolysis. This makes polyether PUs the commercial standard for marine environments, subterranean applications, or any joint subjected to high, continuous humidity. Polyester-based polyols, containing ester linkages, offer vastly superior resistance to oils, greases, and non-polar aliphatic hydrocarbons, while also providing a higher baseline tensile strength. However, ester linkages are susceptible to chain scission (hydrolysis) when exposed to a combination of continuous moisture and elevated temperatures, leading to premature mechanical failure in those specific environments.

Q: Why does a 1K moisture-cured PU adhesive exhibit a slower cure rate in thick bond lines, and how do manufacturers mitigate this to maintain high throughput?

A: The curing mechanism of a 1K system is entirely dependent on the diffusion of ambient $H_2O$ molecules into the polymer matrix to react with the isocyanate end-groups. Because the exposed outer layer cures first, it forms a semi-permeable polymeric skin that exponentially retards further moisture diffusion into the core. In thick bond lines, complete through-cure can take days. For deep-section potting or high-throughput automated assembly, manufacturers must pivot to a 2K system (where chemical polyaddition occurs independently of moisture and geometry) or utilize Polyurethane Reactive (PUR) Hot Melts. PUR systems bypass the diffusion bottleneck by providing instant thermoplastic "green strength" via thermal cooling, allowing parts to be machined or shipped immediately while the secondary moisture-cure completes in transit.

Classification and Chemical Architecture

Four distinct system types — each engineered around a different cure mechanism, processing method, and performance profile

1-Component (1K) Moisture-Cured Systems

Isocyanate-terminated prepolymers that crosslink through reaction with ambient water vapor. Cure is diffusion-limited — rate decelerates with increasing bond line thickness. Risk of CO₂ evolution in thick sections.

Cure Trigger

Ambient moisture (H₂O) • No mixing required

2-Component (2K) Polyaddition Systems

Polyol resin (Part A) and isocyanate hardener (Part B) mixed at a controlled NCO Index. Zero volatile byproducts, infinite depth of cure, and tunable final hardness from rigid thermoset to soft elastomer.

Cure Trigger

Stoichiometric mix (NCO Index) • Exothermic polyaddition

Moisture-Cure

1K System

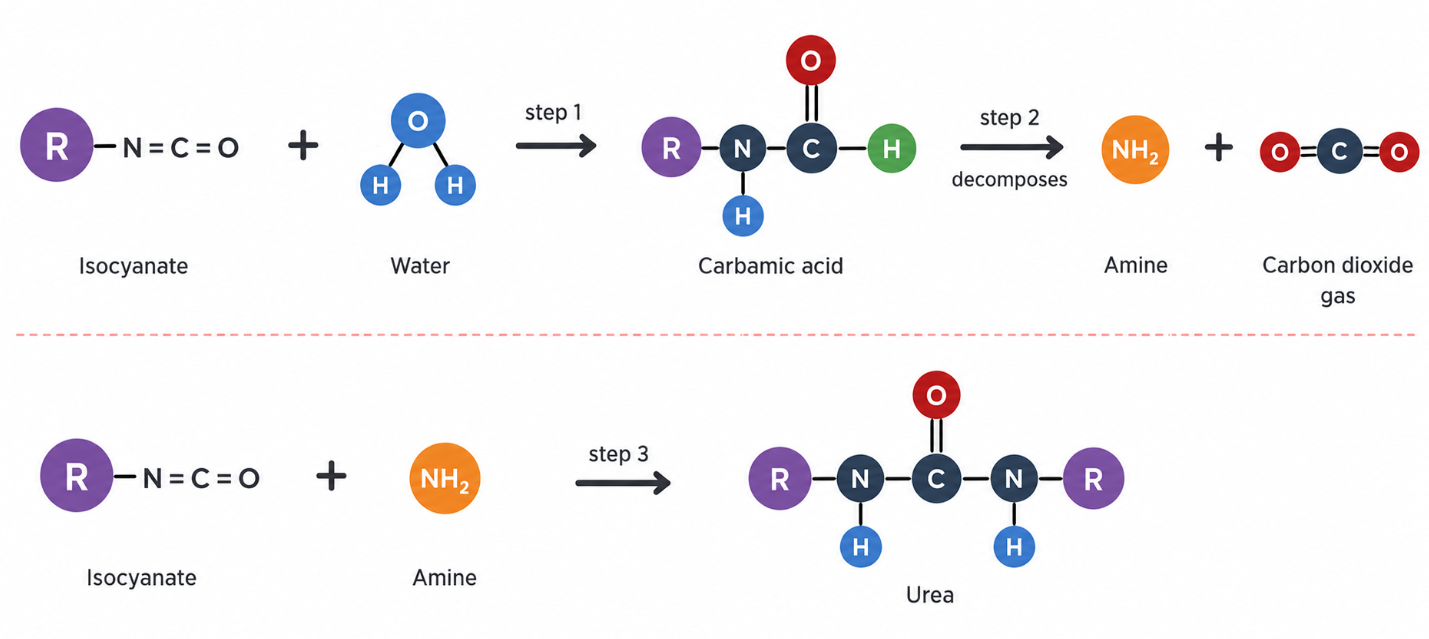

1. 1-Component (1K) Moisture-Cured Polyurethanes

1K systems are formulated from isocyanate-terminated prepolymers — intermediate polymer chains capped with highly reactive -NCO groups. These -NCO groups react with water (H₂O) in ambient air to form urethane linkages and release carbon dioxide (CO₂) as a byproduct, progressively building a crosslinked thermoset network without any mixing on the production line.

Diffusion-Limited Cure Rate

Moisture must permeate through the outer skin of the adhesive to reach unreacted prepolymers beneath. Cure rate decelerates exponentially with increasing adhesive thickness.

CO₂ Evolution Risk in Thick Bond Lines

Trapped CO₂ can cause micro-foaming and voids that compromise structural integrity. Advanced formulations use latent hardeners (aldimines or oxazolidines) that generate crosslinking amines without evolving CO₂ gas.

Polyaddition

2K System

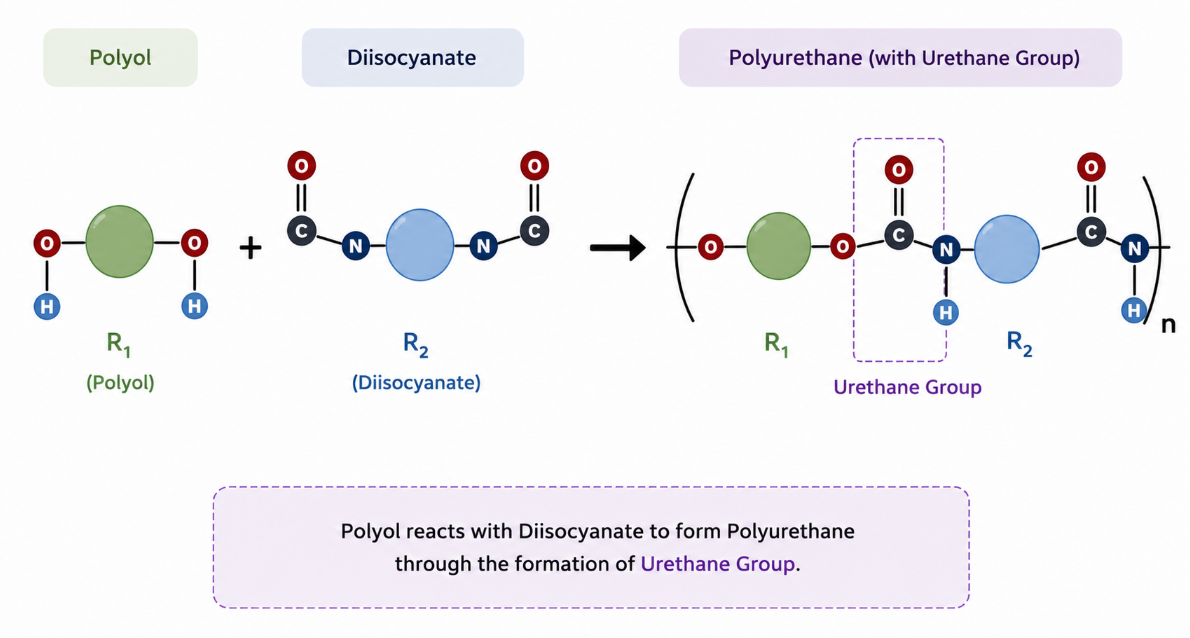

2. 2-Component (2K) Polyaddition Systems

2K systems separate the reactive chemistry into two components: Part A (a blend of polyether or polyester polyols, chain extenders, and organometallic catalysts) and Part B (a monomeric or polymeric MDI hardener). Upon mixing at a precise stoichiometric ratio — the NCO Index — an exothermic polyaddition reaction begins immediately.

Unlike 1K systems, 2K adhesives produce zero volatile byproducts (no CO₂, no solvents), achieve infinite depth of cure, and deliver exceptionally rapid strength buildup. By altering the molecular weight and functionality of the polyols in Part A, engineers can tune the cured state from a rigid, glass-like thermoset to a tough, impact-resistant elastomer.

Primary Application

Structural assembly of composites (wind turbine blades, automotive chassis), panel lamination, and heavy machinery bonding where high tensile strength and predictable rapid cycle times are critical.

Specialty Polyurethane Chemistries

Reactive Hot Melt PUR

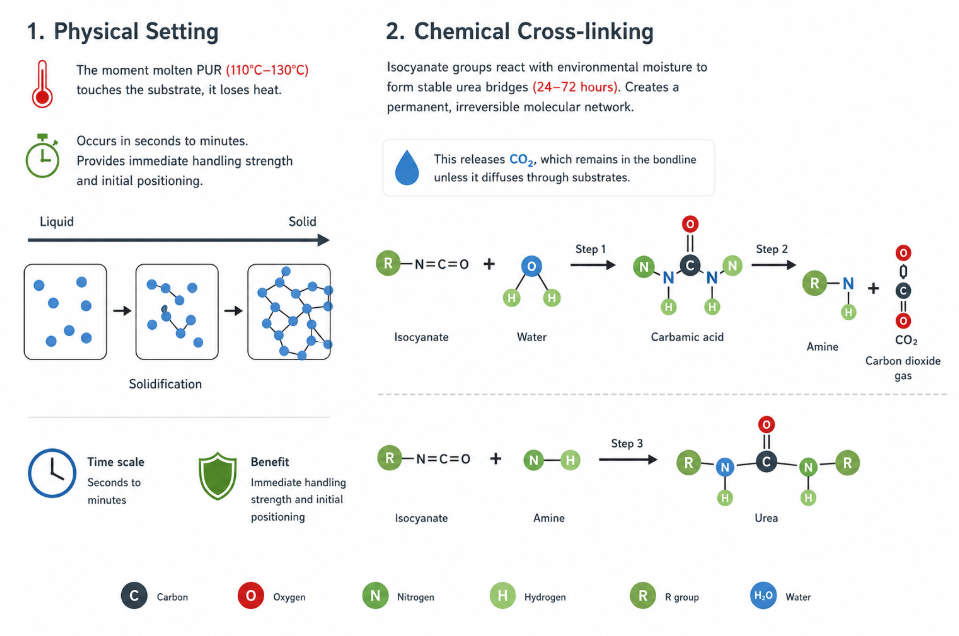

3. Polyurethane Reactive Hot Melts (PUR)

PUR adhesives bridge the gap between traditional thermoplastic hot melts and reactive thermosets. Solid at room temperature, they consist of low-molecular-weight prepolymers with residual unreacted isocyanate groups. Heated to 100–120°C and extruded onto the substrate, the polymer chains crystallize on cooling to deliver immediate green strength within seconds.

A secondary slower reaction then occurs: residual -NCO groups react with ambient moisture over several days to form a permanently crosslinked thermoset network that cannot be remelted, delivering extraordinary thermal, solvent, and creep resistance beyond any non-reactive hot melt.

Primary Use: Automated edge-banding in cabinetry, textile lamination, and high-speed electronics assembly requiring immediate handling strength paired with long-term environmental durability.

Low-VOC PUD

4. Waterborne Polyurethane Dispersions (PUD)

Waterborne PU dispersions offer a low-VOC alternative by dispersing fully reacted polyurethane chains in an aqueous medium rather than chemical solvents. These heat-activated systems eliminate solvent handling hazards and reduce regulatory burden, while retaining the core flexibility and adhesion characteristics of polyurethane chemistry.

While PUD systems hold value for specialized applications such as textile and footwear lamination, our current commercial portfolio is focused on the heavy-duty structural capabilities of reactive hot-melt and 1K/2K polyurethane technologies.

Niche Use: Textile and footwear lamination. Outside current CAPLINQ portfolio focus — see 1K / 2K / PUR for primary structural requirements.

Key Mechanical and Chemical Benefits

Why polyurethane adhesives outperform rigid structural alternatives in dynamic, multi-material assemblies

Mechanical Performance

Exceptional Elongation and Toughness

The micro-phase-separated morphology delivers high elongation at break alongside exceptional tear strength — ideal for bonding dissimilar substrates with differing Coefficients of Thermal Expansion (CTE). By absorbing and dissipating dynamic stresses, thermal expansion, and impact loads, PU adhesives prevent joint fatigue and delamination over long service lives.

Substrate Compatibility

Broad Adhesion Profile

The high polarity of urethane and urea groups facilitates robust hydrogen bonding — and in some cases covalent bonding — with engineered plastics, metals, composites (FRP, CFRP), and cellulosic materials. This universal bonding capability streamlines production lines by minimizing the need for multi-step surface preparation.

Temperature Performance

Thermal Shock Resistance & Low-Temperature Flexibility

Unlike rigid structural adhesives (epoxies, acrylics), PU possesses a distinctively low Glass Transition Temperature (Tg). This inherent elasticity remains highly flexible and resists embrittlement under extreme sub-zero thermal cycling — critical for aerospace, transportation, and construction applications exposed to drastic climatic shifts.

Environmental Durability

Robust Chemical and Environmental Durability

Highly crosslinked PU networks demonstrate outstanding resistance to harsh operational environments. The cured thermoset matrix forms an impermeable barrier against moisture ingress, aliphatic hydrocarbons, automotive fluids, and dilute acids or bases — maintaining structural integrity in continuous-duty industrial and outdoor deployments.

Industrial Applications of Polyurethane Adhesives

PU adhesives excel where load-bearing strength must be paired with dynamic flexibility

By distributing stress evenly across the entire bond line rather than concentrating it at puncture points (as rivets or bolts do), PU adhesives prevent fatigue cracking, reduce overall assembly weight, and streamline manufacturing throughput across a broad range of demanding end markets.

Automotive and EV Battery PU Adhesive Applications

Recommended 2K PU • 1K PU

Automotive & E-Mobility

Lightweighting, battery assembly, and structural glazing

Crash-Resistant Direct Glazing

High-modulus, rapid-curing PU adhesives bond load-bearing windshields directly to the chassis. The cured matrix transfers dynamic loads, contributing up to 30% of cabin torsional rigidity and ensuring structural integrity for airbag deployment during collisions.

EV Battery Assembly & Thermal Management

Specialized thermally conductive 2K PU systems structurally pot and bond battery cells to thermal cold plates. The elastomeric matrix isolates delicate components from harsh road vibrations while engineered fillers dissipate localized heat to prevent thermal runaway.

Acoustic Damping (NVH) and Panel Bonding

PU's viscoelastic morphology actively mitigates Noise, Vibration, and Harshness (NVH) by converting kinetic energy from chassis flex into negligible heat — acting simultaneously as a structural bond and a constrained-layer damper to improve cabin acoustics and eliminate mechanical fastener squeaks.

Recommended 2K PU (Low Tg) • FST-Compliant

Aerospace & Advanced Air Mobility

Dynamic load management and composite assembly

Commercial aviation and eVTOL sectors require structural adhesives that withstand relentless aerodynamic fatigue, high-frequency vibration, and extreme thermal shock (from +60°C to −55°C at cruising altitudes). Structural PU adhesives absorb dynamic loads while maintaining the integrity of lightweight composite architectures.

Interior Honeycomb Core Lamination & Potting

2K PU systems are the standard for assembling secondary structural interior panels (bulkheads, overhead bins) by bonding fiberglass or CFRP skins to Nomex or aluminum honeycomb cores. Elasticity prevents delamination from continuous pressurization cycles; halogen-free formulations ensure compliance with FST (Fire, Smoke, Toxicity) safety mandates.

eVTOL Battery Potting & Fairings

Electric aircraft rely on thermally conductive 2K PU systems to structurally bond and encapsulate high-density battery arrays. These aerospace formulations require an exceptionally low Tg to maintain NVH and impact resistance in sub-zero atmospheric conditions while demonstrating robust chemical resistance to hydraulic fluids such as Skydrol.

Aerospace eVTOL PU Adhesive Applications

Recommended Polyether-Based PU • High Elongation

Marine & Shipbuilding

Hydrodynamic load management and hydrolysis resistance

Commercial shipbuilding and marine manufacturing demand structural adhesives capable of withstanding continuous saltwater immersion, extreme hydrodynamic shock, and severe UV exposure. Polyether-based structural PU adhesives are the industry standard for these environments — their chemical backbone fundamentally resists hydrolysis (water-induced chain scission), unlike polyester-based alternatives.

High-elongation properties absorb slamming loads that would otherwise loosen traditional mechanical deck fasteners over time, while the broad adhesion profile eliminates the need for multi-substrate primer systems on mixed metal and composite hull constructions.

Polyurethane Adhesive – Application & Chemistry Selection Guide

Application	Recommended System	Rationale
Automotive direct glazing	High-modulus 1K or 2K PU	Torsional rigidity, rapid cure, crash energy transfer
EV battery cell bonding / potting	Thermally conductive 2K PU	Vibration isolation, thermal conductivity, no thermal runaway
NVH damping & panel bonding	Viscoelastic 2K PU	Constrained-layer damping, replaces mechanical fasteners
Aircraft honeycomb lamination	FST-compliant 2K PU	Pressurization cycle fatigue resistance, FST compliance
eVTOL battery & fairing bonding	Low-Tg thermally conductive 2K PU	Sub-zero flexibility, Skydrol resistance, NVH performance
Marine hull & deck bonding	Polyether-based 1K or 2K PU	Hydrolysis resistance, hydrodynamic shock absorption
Edge banding & textile lamination	PUR reactive hot melt	Immediate green strength + permanent thermoset after moisture cure
Wind turbine blade & composite assembly	2K PU structural	Zero VOC, infinite depth of cure, tunable modulus
