Classification of Silicone Adhesives by Vulcanization Profile

Silicone adhesives are categorized fundamentally by their stoichiometric packaging (1K vs. 2K) and their specific thermodynamic vulcanization mechanisms. This dictates their curing kinetics, process compatibility, and required environmental triggers.

1. RTV (Room Temperature Vulcanizing) – 1K Systems

These single-component, pre-catalyzed systems rely exclusively on a Condensation Cure mechanism. They utilize ambient atmospheric humidity to trigger the hydrolysis of highly reactive silane end-groups, forming transient silanols that subsequently condense to form the Si-O-Si crosslinked network. Because the reaction front moves from the exterior surface inward, these systems are constrained by a strict depth-of-cure limit (typically 6–10 mm). They are sub-classified by the molecular leaving group (byproduct) evolved during this reaction:

• Acetoxy-Cure: Evolves acetic acid during crosslinking. Characterized by rapid skin-over times and high initial modulus. However, the acidic outgassing is highly corrosive to sensitive metals (e.g., copper, brass, zinc) and can cause stress-cracking in polycarbonates.
• Neutral-Cure (Alkoxy): Evolves alcohols (typically methanol or ethanol). This chemistry is completely non-corrosive and exhibits lower volumetric shrinkage. Due to the steric hindrance of the alkoxy groups, the reaction kinetics are inherently slower than acetoxy systems. Alkoxy formulations are the industry standard for microelectronics, bare-die encapsulation, and PCB component staking.
• Neutral-Cure (Oxime): Evolves ketoximes (such as methyl ethyl ketoxime, or MEKO). This system bridges the gap, offering faster tack-free times than alkoxy cures while remaining completely non-corrosive. Oxime silicones are noted for their aggressive primerless adhesion to challenging, low-surface-energy (LSE) substrates and unpainted metals.
•

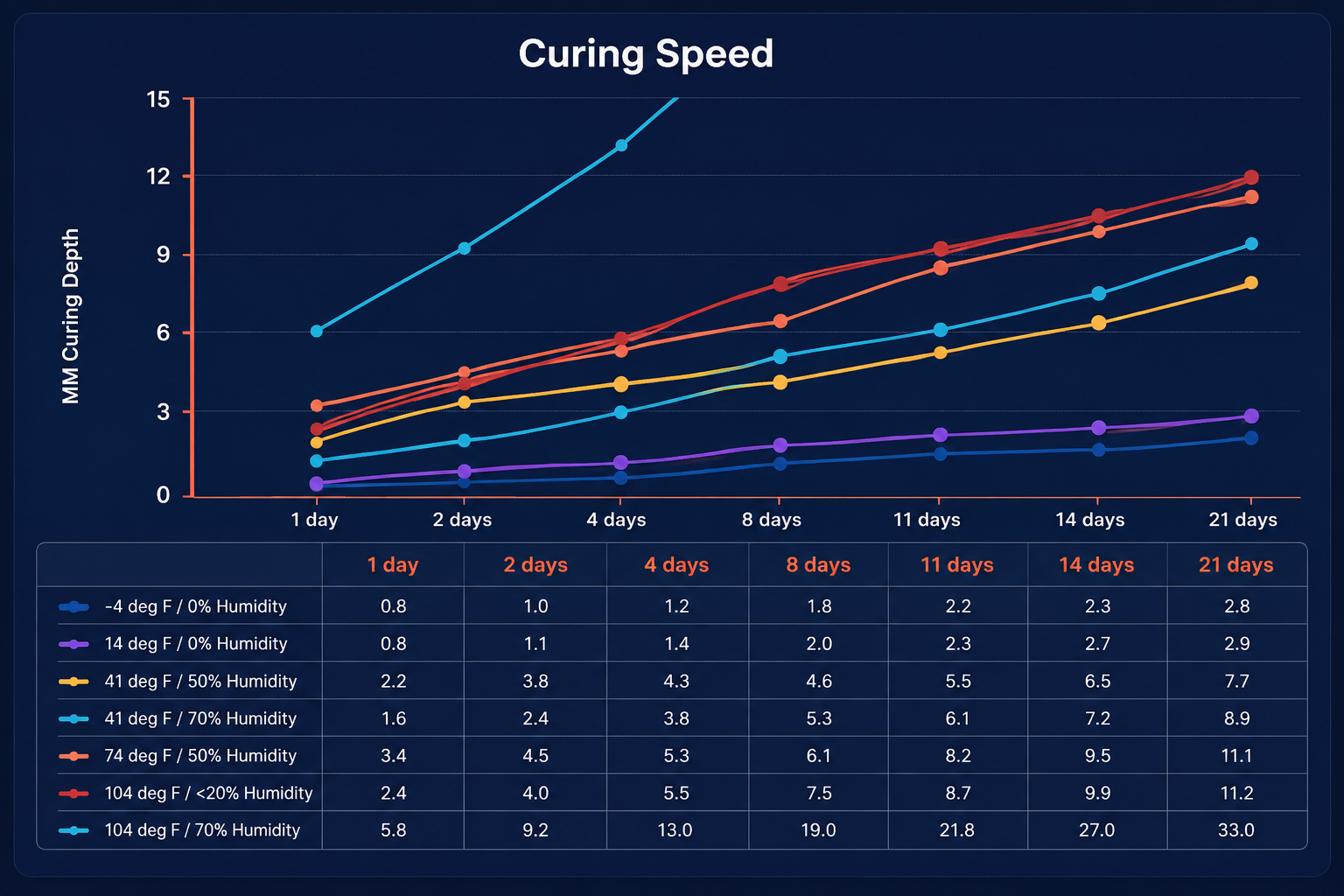

Effect of Humidity and Temperature on Curing Speed & Curing Depth of 1K-RTV Silicone Adhesive

For 1K RTV systems, the primary driver is relative humidity (RH),The core rule of thumb is that the higher the relative humidity, the faster the curing rate. If RH drops below 5%, curing may stop completely.  Thermal input has only a minor effect on skin-forming and overall curing speed.



According to the effect of humidity and temperature on curing speed & curing depth chart, curing depth can increase 2-3x when humidity increases from low (<20% RH) to high (70% RH) at the same temperature. Example at 104°F: 70% RH → 33.0 mm (21 days) and <20% RH 11.2 mm (21 days). Higher temperature speeds up the reaction and increases the ultimate curing depth, but the effect is smaller than that of humidity.

2. RTV (Room Temperature Vulcanizing) – 2K Systems

Two-component systems segregate the polymer base (Component A) from the crosslinker/catalyst (Component B).  Because the moisture required for proper curing is already included in the base compound, this eliminates the dependency on atmospheric moisture diffusion, allowing for infinite depth-of-cure in confined or deep-section geometries.

1. 2K Condensation Cure: Utilizes an organometallic catalyst (frequently organotin compounds like dibutyltin dilaurate or titanates) to drive the condensation of a silanol-terminated PDMS base with a polyalkoxysilane crosslinker.
   • Depending on the grade, mixing ratios of A:B vary broadly from 1:1 up to 100:1. Self-adhesive grades typically require an 8:1 to 12:1 ratio.
   • As the system crosslinks, alcohol is released as a byproduct, leading to a dimensional shrinkage of <3% by volume.
   •  Curing can be slightly accelerated by heat, but temperatures must not exceed 80°C before the process is complete; exceeding this threshold reverses the crosslinking reaction due to trapped byproducts, causing the material to revert to a soft or tacky state.
   • Condensation-curing silicones generally exhibit a high compression set.
2. 2K Addition Cure (Platinum Catalyzed): Operates via Hydrosilylation. A transition-metal platinum complex catalyzes the addition of multi-functional silicon hydride (Si-H) crosslinkers across vinyl-terminated siloxane polymers.
   • These components are typically mixed at specific volumetric ratios of 1:1, 9:1, or 10:1 by weight. Modifying this ratio can lead to incomplete curing or significant property degradation.
   • The vulcanization rate is highly temperature-dependent; as a general rule, a temperature change of approximately 10°C will either halve or double the potlife and curing speed. Shrinkage is virtually non-existent (<0.1%)
   • Addition-curing grades show highly resilient properties with compression set values typically below 20%.
   • However, the platinum catalyst is highly sensitive. Curing can be permanently inhibited by sulfur compounds (e.g., natural rubbers, EPDM), amines (e.g., polyurethanes, epoxy resins), organotin compounds (e.g., condensation RTV-2 catalysts), and various oils or plasticizers

UV-Curable / Dual-Cure Systems:

• •  Utilizes photo-initiators (either free-radical generation for acrylated/methacrylated siloxanes, or cationic systems) to achieve instantaneous surface or line-of-sight crosslinking upon exposure to specific UV wavelengths (e.g., 365nm or 395nm). Many UV silicones incorporate a secondary "shadow cure" mechanism (typically a secondary moisture-condensation pathway) to ensure complete vulcanization in opaque or undercut regions where photons cannot penetrate.

4. HTV (High-Temperature Vulcanizing) Systems

HTV silicones (often supplied as High Consistency Rubbers [HCR] or certain Liquid Silicone Rubbers [LSR]) require significant thermal activation energy to initiate crosslinking, making them ideal for high-volume injection molding, extrusion, or calendering.

• Peroxide Cure (Free Radical): Utilizes organic peroxides (e.g., dicumyl peroxide). Thermal input homolytically cleaves the peroxide into free radicals, which abstract protons from the methyl groups on the siloxane chain, creating highly stable carbon-carbon (C-C) crosslinks. This process leaves behind acidic breakdown products, strictly requiring a high-temperature post-cure bake to volatilize these residues and stabilize the elastomer's physical properties.

• Addition Cure (Thermal-Pt): Relies on the same vinyl/Si-H hydrosilylation chemistry as 2K RTVs, but incorporates specialized latency inhibitors (such as acetylenic alcohols). These inhibitors block the platinum catalyst at room temperature, providing exceptionally long pot-lives. Upon reaching the activation temperature (typically between 130°C and 200°C), the inhibitor volatilizes or dissociates, allowing the platinum to trigger a rapid, high-speed cure.

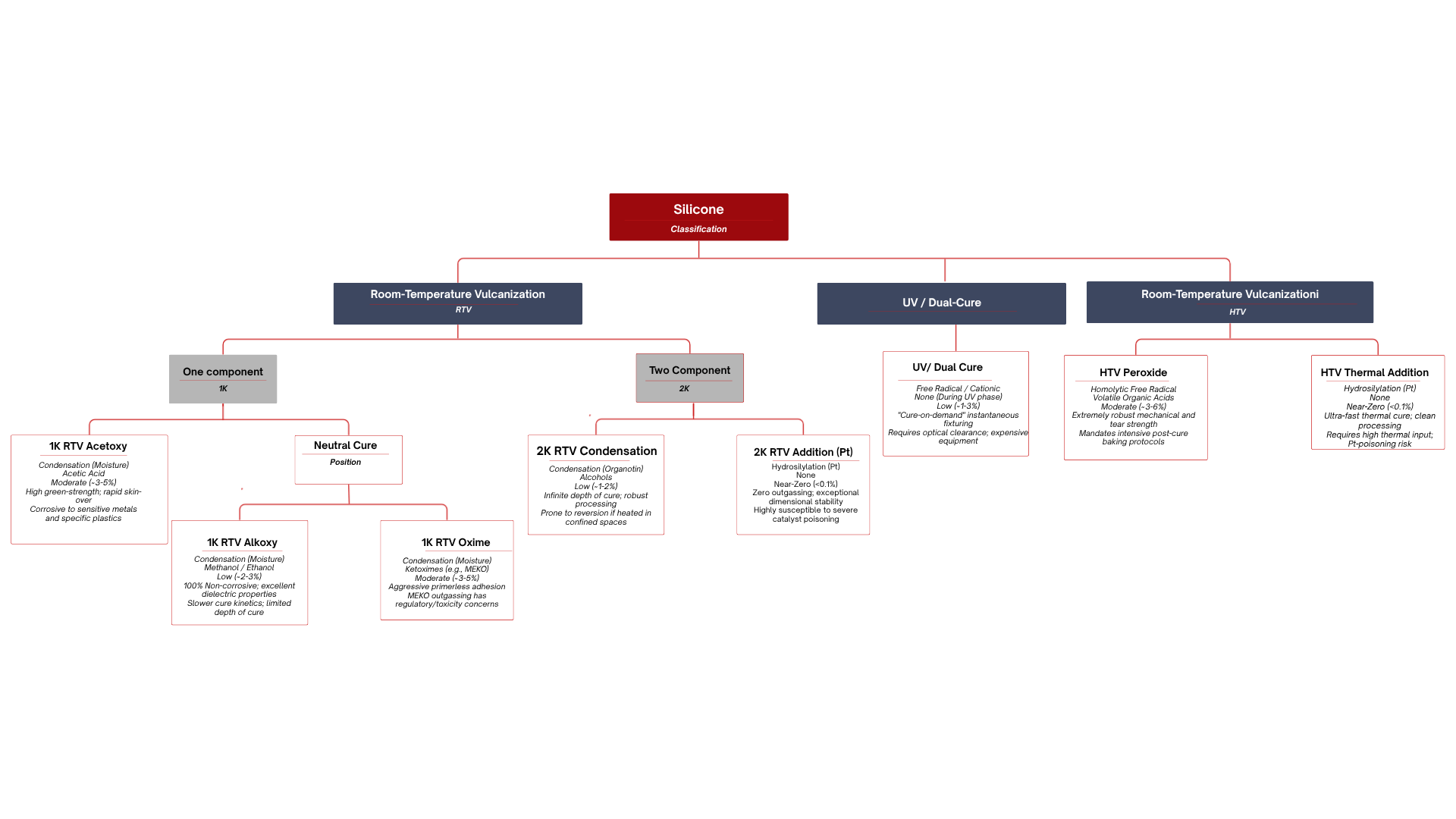

Comparison of Silicone Adhesive Vulcanization Systems

System Architecture	Crosslink Mechanism	Leaving Group / Byproduct	Volumetric Shrinkage	Key Engineering Advantage	Primary Limitation / Risk
1K RTV Acetoxy	Condensation (Moisture)	Acetic Acid	Moderate (~3-5%)	High green-strength; rapid skin-over	Corrosive to sensitive metals and specific plastics
1K RTV Alkoxy	Condensation (Moisture)	Methanol / Ethanol	Low (~2-3%)	100% Non-corrosive; excellent dielectric properties	Slower cure kinetics; limited depth of cure
1K RTV Oxime	Condensation (Moisture)	Ketoximes (e.g., MEKO)	Moderate (~3-5%)	Aggressive primerless adhesion	MEKO outgassing has regulatory/toxicity concerns
2K RTV Condensation	Condensation (Organotin)	Alcohols	Low (~1-2%)	Infinite depth of cure; robust processing	Prone to reversion if heated in confined spaces
2K RTV Addition (Pt)	Hydrosilylation (Pt)	None	Near-Zero (<0.1%)	Zero outgassing; exceptional dimensional stability	Highly susceptible to severe catalyst poisoning
UV / Dual-Cure	Free Radical / Cationic	None (During UV phase)	Low (~1-3%)	"Cure-on-demand" instantaneous fixturing	Requires optical clearance; expensive equipment
HTV Peroxide	Homolytic Free Radical	Volatile Organic Acids	Moderate (~3-6%)	Extremely robust mechanical and tear strength	Mandates intensive post-cure baking protocols
HTV Thermal Addition	Hydrosilylation (Pt)	None	Near-Zero (<0.1%)	Ultra-fast thermal cure; clean processing	Requires high thermal input; Pt-poisoning risk

Silicone Key Features and Benefits

The fundamental performance of silicone adhesives stems directly from their highly stable polysiloxane polymer backbone. Unlike traditional organic adhesives based on carbon-carbon (C-C) backbones, silicones are characterized by fully saturated, alternating silicon and oxygen atoms. This unique chemistry dictates their physical behavior and operational limits.







Chemical Compatibility and Catalyst Inhibition in Addition-Cure Systems

1. Symptoms

Cure inhibition is generally localized to the interface where the Addition-curing RTV silicone meets the contaminated substrate, though severe contamination can affect the bulk mass. Symptoms of an incompatible substrate include:

• Permanent surface tackiness or a completely unreacted, liquid boundary layer at the substrate interface.

• Significantly delayed vulcanization kinetics, or failure to crosslink even under elevated thermal input.

2. Chemical Inhibitors (Catalyst Poisons)

Inhibition occurs when electron-donating ligands in the contaminant form stable coordination complexes with the platinum center, physically blocking it from catalyzing the hydrosilylation of the vinyl and Si-H groups. Potential inhibitors by category with examples:

Compounds containing nitrogen	Amines and amides: – Neutralizing amines – Ethanolamine, N-methylethanolamine, triethanolamine – N,N-dimethyl ethanolamine, n-butylamine, diethylamine – Triethylamine, tetramethylenediamine, cyclohexylamine – Melamine – Dimethylformamide Nitriles, cyanates, oximo, nitroso, hydrazo, azo compounds: – Adiponitrile – 2-butoxime – Alpha-nitroso-beta-naphthol Chelates: – EDTA (ethylenediaminetetraacetic acid) – NTA (nitriloacetic acid)
Compounds containing sulfur	Sulfides, thio compounds: – Dibenzyldisulfide, thioacetic acid, allylthiourea
Compounds containing Tin	Fatty acid tin salts, such as those used in tin-catalyzed silicone release coatings
Compounds containing Phosphorus	Phosphines: – Triphenylphosphine Phosphites: – Triethylphosphite
Compounds containing arsenic, antimony, selenium, tellurium	Arsines, stibenes, selenide, telluride: Triphenylarsine, triphenylstibene P-chlorophenylcarboxymethylselenide
Residual Solvent or Monomers	Chlorinated hydrocarbons that contain amine stabilizers Alcohols: – Ethanol, methanol Esters: – Ethyl acetate, vinyl acetate Compounds with unsaturated bonds:
Residual solvents that do not inhibit cure	Nonchlorinated aromatic and aliphatic solvents: – Toluene, xylene – Hexane, mineral spirits
Primers that may inhibit cure	Polyethylene that has an anti-slip, antioxidant or other additive listed previously Primers with pigments that contain compounds listed previously 100% sodium salt primers, such as sodium alginate or carboxymethylcellulose sodium salt however, if these salts are used with hydroxyethylcellulose, inhibition will not occur Clay coatings that use polyvinylacetate or acrylic latex as a binder Coatings that contain calcium carbonate Coatings composed of the following combinations: Natural rubber latex/clay; latex/ethylated starch Styrene/acrylic Polyvinylacetate; polyvinylacetate/acrylic
Primers that do not inhibit cure	Polyvinylalcohol; polyvinylalcohol/alginate Ethylcellulose; hydroxyethylcellulose/alginate; hydroxyethylcellulose/carboxymethylcellulose Clay/S.B.R. coatings

3. Hidden Sources of Contamination

Dispensing and Mixing Equipment: Residual traces of organotin catalysts or amine-cured epoxies inside shared metering lines or static mixers.

Vapor-Phase Poisoning: Shared post-curing ovens or drying cabinets that previously housed organic rubbers or casting resins can outgas amine or sulfur vapors, inhibiting the silicone as it cures in the same airspace.

4. Engineering Mitigation and Process Control

To ensure robust crosslinking and reliable adhesion, compatibility must be managed through strict process controls:

Patch Testing: If a substrate's chemical profile is unknown, preliminary small-scale compatibility trials are strictly recommended before full production.

Surface Preparation: Physical cleaning using low-boiling, non-polar, grease-dissolving solvents (e.g., isopropanol, aliphatic solvents) to strip migratory plasticizers and surface oils.

Chemical Modification (Catalyst Boosting): In boundary-case scenarios where trace inhibitors cannot be entirely removed, the formulation's robustness can be increased by adding a catalyst booster. Adding up to 0.25 wt. % introduces an excess of active platinum to overwhelm trace contaminants and drive the cure to completion.

Dow Electronics Protection & Assembly Academy - Lab Series - Inhibition

https://videos.dow.com/view/M25307



Thermal Reversion in Condensation-Curing Silicones

1. The Chemical Mechanism of Reversion

Condensation-curing systems (both 1K and 2K) crosslink by forming Si-O-Si bonds while simultaneously cleaving off volatile leaving groups, such as alcohols, amines, oximes, or acetic acid. Because this is a reversible equilibrium reaction, the stability of the polymer network depends entirely on the successful outgassing of these byproducts.

If a condensation-cured silicone is permanently confined in a deeply sealed, unventilated assembly, these volatile byproducts become physically trapped within the elastomer matrix. When this confined system is subjected to elevated temperatures—specifically exceeding 90°C—the trapped volatiles violently attack the polymer backbone.

Furthermore, at extreme thermal loads exceeding 200°C, any trace atmospheric moisture or free hydroxyl groups residing on the surface of internal silica fillers can also trigger the hydrolytic cleavage of the Si-O bonds.

2. Macroscopic Symptoms of Failure

When reversion occurs, the elastomer loses its structural integrity. The physical symptoms include:

• A permanent decrease in Shore hardness (severe softening).

• The elastomer reverting from a solid, resilient rubber back into a sticky, putty-like, or semi-liquid state.

• A catastrophic drop in mechanical properties (tensile strength, tear resistance) and a compression set approaching 100% (complete loss of elastic memory).

3. Engineering Mitigations and Process Controls

Preventing reversion requires rigorous thermodynamic and mechanical design controls to ensure the equilibrium reaction favors polymer stability rather than depolymerization.

Atmospheric Oxygen and Ventilation: The reversion process is fundamentally inhibited by the presence of atmospheric air. Therefore, high heat resistance in condensation silicones strictly requires unrestricted access to atmospheric oxygen. Gasket geometries and potting housings must be designed to allow continuous outgassing.

Thermal Post-Treatment (Baking): To stabilize the elastomer before it enters service, it is highly recommended to perform a controlled post-cure to drive off the byproducts. The freshly cured vulcanizate should be stored open (maximizing surface area exposure) and aged.

Room Temperature Aging: Approximately 24 hours per cm of thickness to the nearest exposed surface.

Thermal Aging: Approximately 6 hours per cm of thickness at a maximum temperature of 70°C. Note: Heating the elastomer above 80°C before the byproducts have escaped will immediately induce reversion.

System Substitution: If the application strictly demands a deeply confined, unventilated assembly (e.g., a completely sealed electronic housing) that will be subjected to high operating temperatures, condensation-curing silicones must be engineered out of the design. 2K Addition-Cure (Platinum) silicones must be specified instead, as they operate via hydrosilylation, yield zero volatile byproducts, and thus carry absolutely zero risk of chemical reversion at elevated temperatures.



Storage Kinetics and Shelf Life Management

Shelf Life: Depending on the specific elastomer grade, silicone adhesives generally exhibit a shelf life ranging from 3 to 24 months from the date of delivery.

 Conditions: Materials must be stored in their original, tightly closed containers in a dry environment, with ambient temperatures maintained between 5°C and 30°C. Prolonged exposure to average temperatures exceeding 30°C will thermodynamically accelerate material aging and significantly shorten the shelf life. Furthermore, containers must not be exposed to direct sunlight, and extreme care must be taken to prevent particulate contamination (e.g., dust, dirt) from contacting the polymer surface upon opening.

Condensation-Curing Systems (RTV-1 & RTV-2)

 Because RTV-1 systems are triggered by atmospheric moisture, any ingress of ambient air into the packaging will induce premature skin-over. Similarly, the organotin catalysts (e.g., T-series catalysts) used in RTV-2 systems will react with ambient humidity to form unwanted siliceous compounds. Conversely, the base compound (Component A) of a 2K condensation system requires a highly calibrated amount of internal moisture to execute the proper condensation reaction. If containers are left open or loosely sealed, this critical internal moisture evaporates. This depletion directly results in severely retarded or incomplete vulcanization.

Recovery Protocol: If moisture depletion occurs, the base compound can be re-saturated by adding 1 to 2 grams of water per kilogram of base compound, stirring the mixture thoroughly, and storing it in a tightly closed drum at room temperature for at least 24 hours to allow the moisture to evenly diffuse.

Addition-Curing Systems (Platinum-Catalyzed RTV-2)

The platinum catalyst in addition-cure systems is hyper-reactive; even microscopic trace amounts are sufficient to trigger localized crosslinking upon contact with the Si-H crosslinking component. Severe contamination can occur simply by storing open drums of Component A and Component B adjacent to one another. This interaction can result in the formation of cured elastomeric particles within the bulk unreacted liquid or the dangerous release of hydrogen gas. To prevent this, drums must be hermetically sealed immediately after dispensing.

Spectrum of Technical Applications

Silicone elastomers are deployed across highly demanding industrial interfaces due to their viscoelasticity, thermal stability, and dielectric strength.
