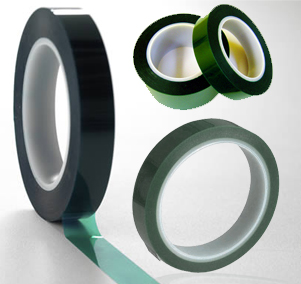

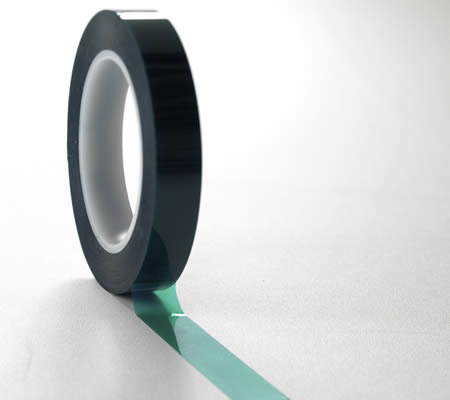

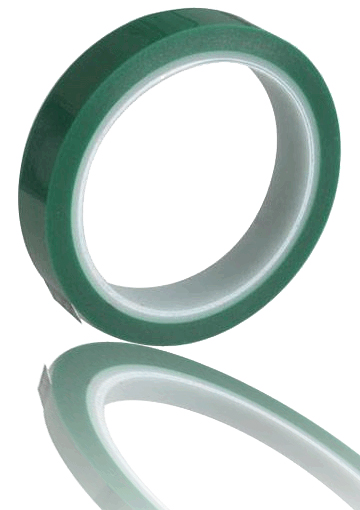

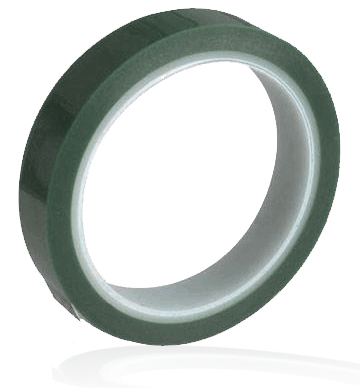

PET2S-Green | 2-mil Green Polyester Tape (PET) with Silicone Adhesive


Main features
  • 2 mil green polyester film
  • Silicone adhesive
  • 7000V breakdown voltage

Product Description

LINQTAPE PET2S is a 2-mil polyester film backing with a pressure sensitive silicone adhesive system. PET2S polyester tape is a no/low residue tape designed for splicing and masking applications where high initial adhesion is required, but no residue once the tape is removed.

LINQTAPE™ PET2S Series is a high performance, flexible, high temperature resistant polyester tape used in many high temperature applications. For very high temperature applications, polyimide tape should be used, but for applications with temperatures up to 205°C (400°F), PET2S can be used. These applications include but are not limited to photosplicing, powder coating, anodizing, e-coating and other high temperature masking applications.



Key Features:

  • No residue
  • High initial adhesion
  • For splicing and masking
  • High performance
  • Flexible
Product Family
PET2S-Green-Series
50.80 mm 508 mm
66 m
Normal Price
$61.308
Sale Price
$47.16/Roll
Quantity OrderedPrice per Roll
  1 - 4 Roll  $47.16 /Roll
  5 - 9 Roll  $31.45 /Roll
  10 - 24 Roll  $20.44 /Roll
  25 - 49 Roll  $16.94 /Roll
Normal Price
$437.151
Sale Price
$336.27/Roll
Quantity OrderedPrice per Roll
  1 - 2 Roll  $336.27 /Roll
  3 - 4 Roll  $276.23 /Roll
  5 - 9 Roll  $216.18 /Roll
  10 - 500 Roll  $186.15 /Roll
Normal Price
$794.833
Sale Price
$611.41/Roll
Quantity OrderedPrice per Roll
  1 - 2 Roll  $611.41 /Roll
  3 - 4 Roll  $502.23 /Roll
  5 - 9 Roll  $393.05 /Roll
  10 - 500 Roll  $338.46 /Roll
$16.94
Shipping in 2 weeks Shipping in 2 weeks Shipping in 2 weeks

Quantity:

Technical Specifications

General Properties
Adhesive Layer
Adhesive Layer
A layer that is applied to one surface or both to bind items together and resist their separation
Silicone
Adhesive Thickness
Adhesive Thickness
Adhesive thickness indicates the thickness of an adhesive layer.

It refers to the adhesive thickness of a single side so for double sided tapes it always needs to be multiplied.
38.1 µm
Chemistry Type Polyester
Color
Color
The color
Green
Film Thickness
Film Thickness
Film thickness is the thickness of a backing film without taking into account any coatings or adhesive layers. It is measured in micron and the conversion factor to mil is 0.039.
50.8 µm
Single or Double-Sided Adhesive
Single or Double-Sided Adhesive
Describes whether a tape is single- or double-sided. If it is single-sided, it has adhesive only on one side of the backing film. If it is double-sided, then it has adhesive on both sides of the backing film.
Single-Sided
Special Layer None
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
88.9 μm
Mechanical Properties
Adhesion Strength
Adhesion Strength
Adhesion is the bond strength measurement of a coating to a substrate. When an adhesive is bonded to an item or surface, numerous physical, mechanical and chemical forces come into play, which may have an effect on each other.
30 Oz/in
Tensile Strength (Thin Film)
Tensile Strength (Thin Film)
Tensile strength determines the resistance of a material to break under tension and it measures how much elongating load (or tensile stress) it can handle before fracture.

To make it simple, it measures how much force we have to apply when pulling apart a material before it breaks.
87 N/cm
Electrical Properties
Breakdown Voltage
Breakdown Voltage
Breakdown voltage is the minimum voltage necessary to force an insulator to conduct some amount of electricity.
It is the point at which a material ceases to be an insulator and becomes a resistor that  conducts electricity at some proportion of the total current.

After dielectric breakdown, the material may or may not behave as an insulator any more because of the molecular structure alteration. The current flow tend to create a localised puncture that totally alters the dielectric properties of the material.

This electrical property is thickness dependent and is the maximum amount of voltage that a dielectric material can withstand before breaking down. The breakdown voltage is calculated by multiplying the dielectric strength of the material times the thickness of the film.
7000 V
Thermal Properties
Temperature Resistance
Temperature Resistance
Temperature resistance is the maximum temperature that the material or product can withstand for a period of time.

The temperatures listed should be considered as guidelines for an operating temperature of about 30 minutes. Typically, the material can withstand much longer times at temperatures about 20°C lower and can withstand much higher temperatures for short, intermittent times.
200 ˚C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
Yes
VOC-Free (100% solids content)
VOC-Free (100% solids content)
VOC means Volatile Organic compound. VOCs are evaporating molecules and are literally everywhere around us. Our scents are volatile organic compounds, most of the things that we smell are VOC etc. So what do we mean when we state that a product is VOC free?

A VOC free product, according to the FTC is one where:

1)VOCs have not been intentionally added to the product.

2)The presence of VOCs at that level does not cause material harm that consumers typically associate with VOCs, including but not limited to, harm to the environment or human health.

3)The presence of VOCs at that level does not result in concentrations higher than would be found at background levels in the ambient air.
Yes
