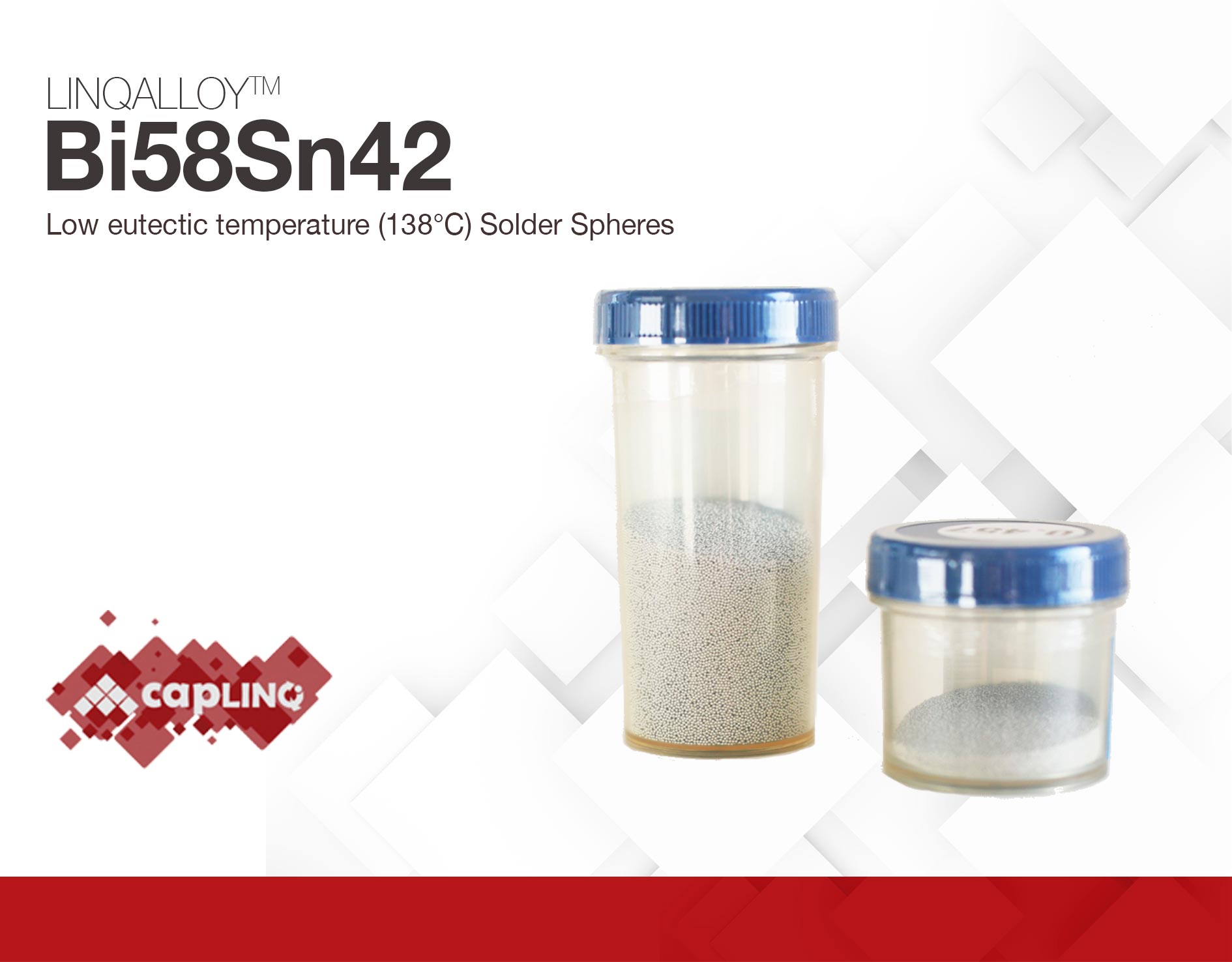

Bi58Sn42 | Eutectic Pbfree Solder Spheres

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Leadfree Solder Spheres
  • Lowest Cost Eutetic (138°C) Solder
  • Low-Temperature Eutectic Solder

Product Description

Bi58Sn42 Low-temperature eutectic solder spheres are lead-free Bismuth-Tin alloys that contain 58% Bismuth (Bi), 42% Tin (Sn) and are often written as 58Bi42Sn, Sn42Bi58, or 42Sn58Bi. Bi58Sn42 Solder Spheres are low-temperature, lead-free, eutectic solder spheres and are used by companies working with BGA, CSP, LBGA, PBGA and CBGA components who have made the transition to Lead-free (Pb-free) soldering.

Features:

  • Lowest Cost Eutectic (138°C) Solder
  • Low-Temperature Eutectic Solder compared to Tin-Silver
  • Compatible with many Flux Types
  • Lead-free

What do I get when I buy Bi58Sn42 Solder Spheres from CAPLINQ?

The advantage of ordering solder spheres online at CAPLINQ.com is that you can be sure of the quality. The solder spheres you receive are originally manufactured solder spheres packed into jars with inert gas (nitrogen). We do not repack the solder balls we receive, so the jars you will receive have never been opened, thus ensuring the quality of the product you receive. The lid of the jar is also always sealed with a shrink-wrapped plastic wrap ensuring that the solder spheres do not oxidate in the jar.

Furthermore, each jar has a clear label on the lid specifying the solder ball diameter as well as a label on the front identifying the alloy type, the quantity of spheres in the jar, the date of manufacture, and the product lot (or batch) number. This batch number is also tied to a certificate of conformance that is also provided with the solder spheres and ensures the Bi58Sn42 solder spheres meet the following quality criteria:

  • Tin (Sn): 42%
  • Bismuth (Bi): 58%
  • Eutectic Temperature: 138°C
  • Melting Temperature (Solidus): 138°C
  • Melting Temperature (Liquidus): 138°C
  • Spheroid Tolerance : Within 1.5%

Diameter Tolerance

  • 0.075mm - 0.15mm (3-6 mils) : ±0.005mm (±0.2 mils)
  • 0.20mm - 0.60mm (8-24 mils) : ±0.010mm (±0.4 mils)
  • 0.65mm - 0.89mm (25-30 mils) : ±0.015mm (±0.6 mils)
Product Family
Bi58Sn42
0.250 mm 0.300 mm 0.400 mm 0.457 mm 0.500 mm 0.635 mm
250 kpcs/jar
Normal Price
$249.60
Sale Price
$192.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $192.00 /Jar
  2 - 3 Jar  $133.30 /Jar
  4 - 8 Jar  $85.71 /Jar
  9 - 24 Jar  $70.59 /Jar
  25 - 99 Jar  $57.14 /Jar
Normal Price
$266.50
Sale Price
$205.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $205.00 /Jar
  2 - 3 Jar  $155.56 /Jar
  4 - 8 Jar  $100.00 /Jar
  9 - 24 Jar  $82.35 /Jar
  25 - 99 Jar  $66.67 /Jar
Normal Price
$266.50
Sale Price
$205.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $205.00 /Jar
  2 - 3 Jar  $168.00 /Jar
  4 - 8 Jar  $104.00 /Jar
  9 - 24 Jar  $87.00 /Jar
  25 - 99 Jar  $76.19 /Jar
Normal Price
$262.60
Sale Price
$202.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $202.00 /Jar
  2 - 3 Jar  $168.00 /Jar
  4 - 8 Jar  $102.00 /Jar
  9 - 24 Jar  $88.00 /Jar
  25 - 99 Jar  $72.30 /Jar
Normal Price
$278.20
Sale Price
$214.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $214.00 /Jar
  2 - 3 Jar  $168.00 /Jar
  4 - 8 Jar  $102.00 /Jar
  9 - 24 Jar  $88.00 /Jar
  25 - 99 Jar  $71.88 /Jar
Normal Price
$356.20
Sale Price
$274.00/Jar
Quantity OrderedPrice per Jar
  1 - 1 Jar  $274.00 /Jar
  2 - 3 Jar  $211.11 /Jar
  4 - 8 Jar  $135.71 /Jar
  9 - 24 Jar  $111.76 /Jar
  25 - 99 Jar  $90.48 /Jar
$57.14
In stock In stock

Quantity:

Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
Bi58Sn42
Alloy Type
Alloy Type
A metallic element type
Bi58Sn42
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
8.56g/cc
Spheroid Tolerance
Spheroid Tolerance
The allowed % that a solder ball (solder sphere) can divert from being perfectly round and spherical.

We take one lot of solder spheres and divide it into 4 smaller lots. Each lot is then checked with advanced visual inspection systems. If even 1 ball is out of spec, the entire batch is scrapped and reworked!
1.5 %
Metal Loading
Bismuth (Bi)
Bismuth (Bi)
Bismuth is a chemical element with symbol Bi and atomic number 83. Bismuth is the most naturally diamagnetic element, and has one of the lowest values of thermal conductivity among metals.
58 %
Copper (Cu)
Copper (Cu)
Copper is a soft malleable and ductile metal with a very high thermal and electrical conductivity.
0 %
Lead (Pb) 0 %
Silver (Ag) 0 %
Tin (Sn) 42 %
Thermal Properties
Melting Temperature
Eutectic Melting Temperature
Eutectic Melting Temperature
Eutectic melting temperature is the precise temperature point at which an alloy turns from pure solid to liquid.

Eutectic alloys are unique. They do not have a Solidus / Liquidus melting range but they have a single temperature point at which the alloy immediately becomes liquid and vice versa.
138 °C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
Yes
